Basics, Uses, and Common Applications for Electric Gate Openers

Electric gate openers are the powered equipment that opens and closes a driveway gate, commercial gate, farm gate, or controlled entry point. They are related to access control, but not the entire access control system.

C & M Garage Doors has covered the broader topic of access control gate systems, including gate styles, entry methods, security features, and maintenance considerations. Here though, we're going to narrow our focus to the opener itself: what it does and what matters before installation.

What an Electric Gate Opener Does

An electric gate opener is a motor-driven operator that moves a gate without someone opening it by hand. It may be activated by a remote, keypad, intercom, card reader, vehicle sensor, smartphone app, or another access device. Once triggered, the operator opens the gate, then closes it after a command or preset delay.

The opener is one part of the full system. A complete automatic gate setup would also include posts, hinges or track, a control board, power supply, safety sensors, access controls, and emergency release hardware. The opener is the workhorse behind it all.

Common Types of Electric Gate Openers

Most gate openers are selected based on how the gate moves. The right choice depends on gate style, gate weight, wind exposure, driveway grade, traffic volume, and available power.

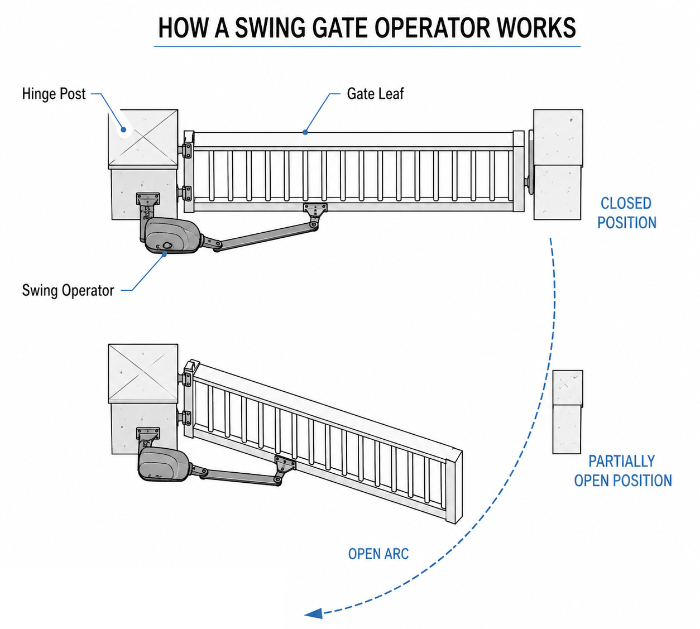

Swing gate openers are used on gates that open inward or outward like a door. They are common on residential driveways, private lanes, and decorative entry gates. The operator may use an articulated arm, linear actuator, underground motor, or post-mounted drive system. Swing openers work well when there is enough room for the gate leaf to travel, but they are less practical where the driveway slopes sharply or where snow buildup blocks the swing path.

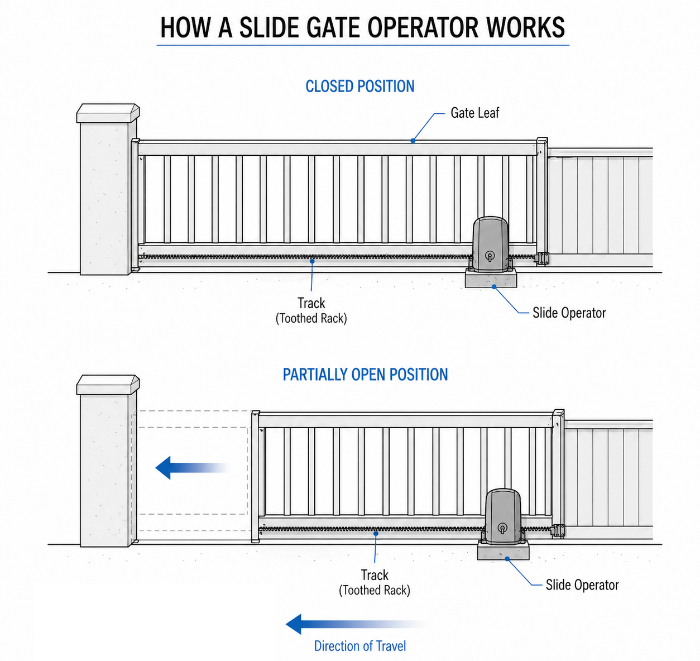

Slide gate openers move a gate sideways along a track or cantilever system. They are common for commercial properties, storage yards, industrial sites, apartment complexes, and driveways with limited depth. Because the gate moves parallel to the fence line, it does not need the same open arc as a swing gate. You will need to ensure that the tracks stay cleared of debris, ice, and gravel.

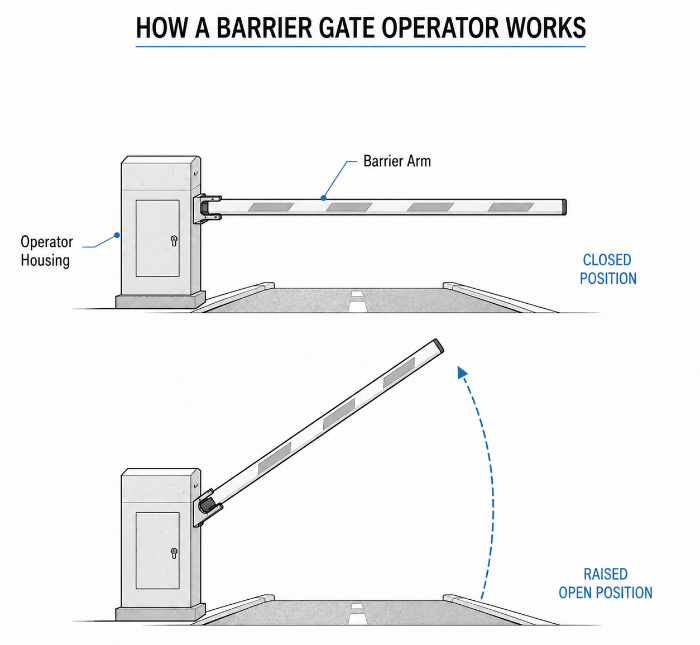

Barrier arm operators are used for parking lots, gated communities, garages, commercial entrances, and controlled traffic points. They do not provide the same perimeter security as a full gate, but they are excellent for managing vehicle flow. These systems are often paired with keypads, card readers, ticket systems, transponders, or license plate recognition.

Power, Backup, and Safety

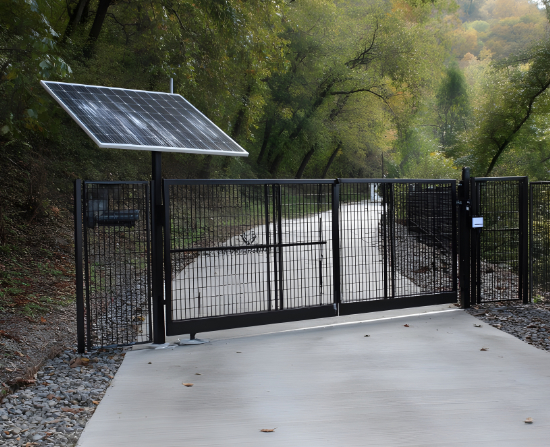

Most electric gate openers run on standard electrical service, but some properties use low-voltage or solar-assisted setups when trenching power is difficult. Solar can be practical for remote locations, rural drives, farms, and seasonal properties, but it must be sized for gate weight, usage, battery capacity, and local sunlight.

Backup access is essential. Every automatic gate should have a safe way to operate during a power outage or equipment failure. That may include a battery backup, manual release key, emergency access box, or fire department access device.

Safety also has to be built into the design. An electric opener moves heavy equipment, so photo-eye sensors, obstruction detection, reversing mechanisms, warning signs, edge sensors, and proper control placement all matter.

Common Areas of Use

Electric gate openers are used anywhere controlled vehicle access is useful.

• Residential driveways
• Ranch properties
• Farms
• Private roads
• Gated communities
• Apartment complexes
• Storage facilities
• Warehouses
• Service yards
• Parking lots
• Commercial campuses

For homes, the main priorities are convenience, privacy, curb appeal, and keeping unwanted vehicles away from the driveway. A homeowner may want a gate opener to enter during bad weather without leaving the vehicle, keep a long driveway more private, or add controlled access for family members, guests, and deliveries.

For commercial properties, the priorities are security, traffic control, liability reduction, and accountability. A business may need to control after-hours access, limit entry to employees or vendors, protect inventory, or manage parking. In those settings, the opener is often connected to a larger access system with entry logs, cameras, and user-specific credentials.

For agricultural and rural properties, long drives, livestock areas, equipment yards, and remote entrances can make manual gates inconvenient. A properly selected opener saves time while keeping gates closed when they need to stay closed.

What to Consider Before Installation

Before choosing an electric gate opener, look at the gate first. A gate that sags, drags, flexes, or does not latch properly will not become reliable just because a motor is added. The gate should move smoothly by hand before automation is installed.

Next, consider how often the gate will operate. A residential driveway may only cycle a few times per day. A commercial entrance may cycle dozens or hundreds of times. Duty cycle, motor strength, control board quality, and hardware durability should match the workload.

Northern Colorado weather also matters. Wind, snow, ice, dust, and temperature swings can all affect performance. Heavy decorative gates may need stronger operators, and slide gates near gravel or drifting snow may need extra attention to track placement and maintenance.

Finally, think about who needs access. A simple remote may be enough for one household. A multi-tenant property, shop yard, or employee entrance may need keypads, codes, card readers, intercoms, or app-based control.

Maintenance and Service

Electric gate openers need periodic inspection. Hinges, rollers, tracks, chains, belts, arms, brackets, batteries, sensors, and control wiring should all be checked. Small problems often show up as slow movement, unusual noise, intermittent operation, or a gate that stops before completing its cycle.

The Bottom Line

Electric gate openers help automate access, improve control, and make gates practical for everyday use. The key is matching the opener to the gate, the property, and the amount of traffic it will handle.
